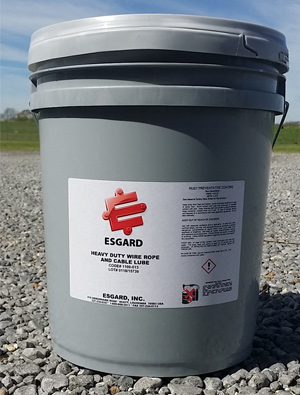

Esgard
Esgard heavy duty wire rope and cable lube is a premium wire rope and cable dressing that extends cable life by penetrating the cable and preventing rust and corrosion. Esgard heavy duty wire rope and cable lube displaces moisture and lubricates against wear. It is also an effective boom slide lubricant for cranes. In addition, it is flexible down to -50°F (-46°C) and will not drop up to over 500°F (260°C). Esgard heavy duty wire rope and cable lube does not produce a sheen when immersed in either fresh or saltwater.
Wire ropes of all types, anchor lines, pendant lines, guy wires, large diameter to small diameter main load lines on cranes. Recommended for use on wire rope in conjunction with dynamic heave compensation equipment.
| TYPICAL PRODUCT PROPERTIES | |||
|---|---|---|---|
|
TYPE: Rust-inhibitive compound
|
DENSITY (calculated): 11.7 – 12.4 lb/gal (1.41 – 1.49 kg/l) | ||
|
VISCOSITY: NLGI Grade #2
|
CONE PENETRATION (ASTM D217): 265 – 295 | ||
|
TEXTURE/COLOR: Smooth & Creamy/Dark Gray
|
SOLIDS CONTENT (ASTM D128): > 60.0% | ||
|
DROPPING POINT (ASTM D 2265): > 500°f (260°C)
|
FLASH POINT (ASTM D 92 Base Oil): 455°F (235°C) | ||
|
SALF FOG (ASTM B117): Pass (1150 HRS)
|
VOLATILE MATTER (EPA 24): 1.5% by wt | ||
|
LOAD WEAR INDEX (ASTM D2596): > 60 KGF
|
WELD LOAD (ASTM 2596): > 350 kg | ||
|
OIL SEPARATION (FED STD 791 TM 321): < 2.0 % by wt
|
LOW TEMP FLEX (MIL-PRF-18458) (-50°F/-45.5°C): Pass | ||
Application: Apply by swabbing, brushing, or under pressure through a wire rope lubricator. Contact Esgard for specific lubricator recommendations. Esgard heavy duty wire rope and cable lube comes ready to use. Do not thin or dilute. If heating is necessary for application, use drum heaters. Do not heat above 130°F (55°C) to avoid scalding hazard.
